Description

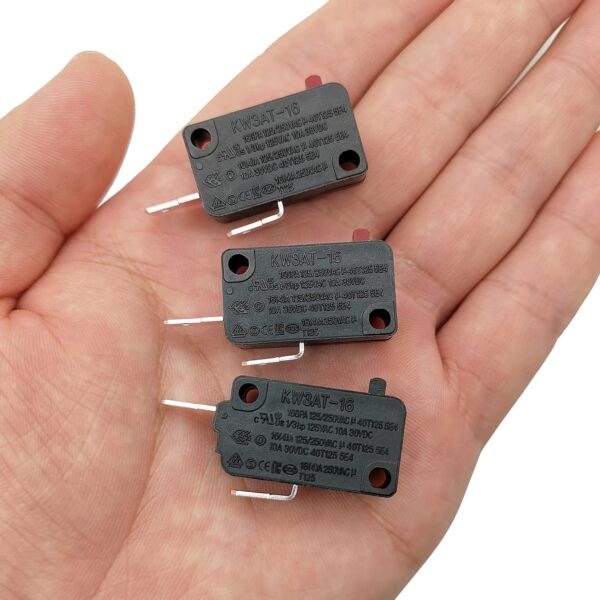

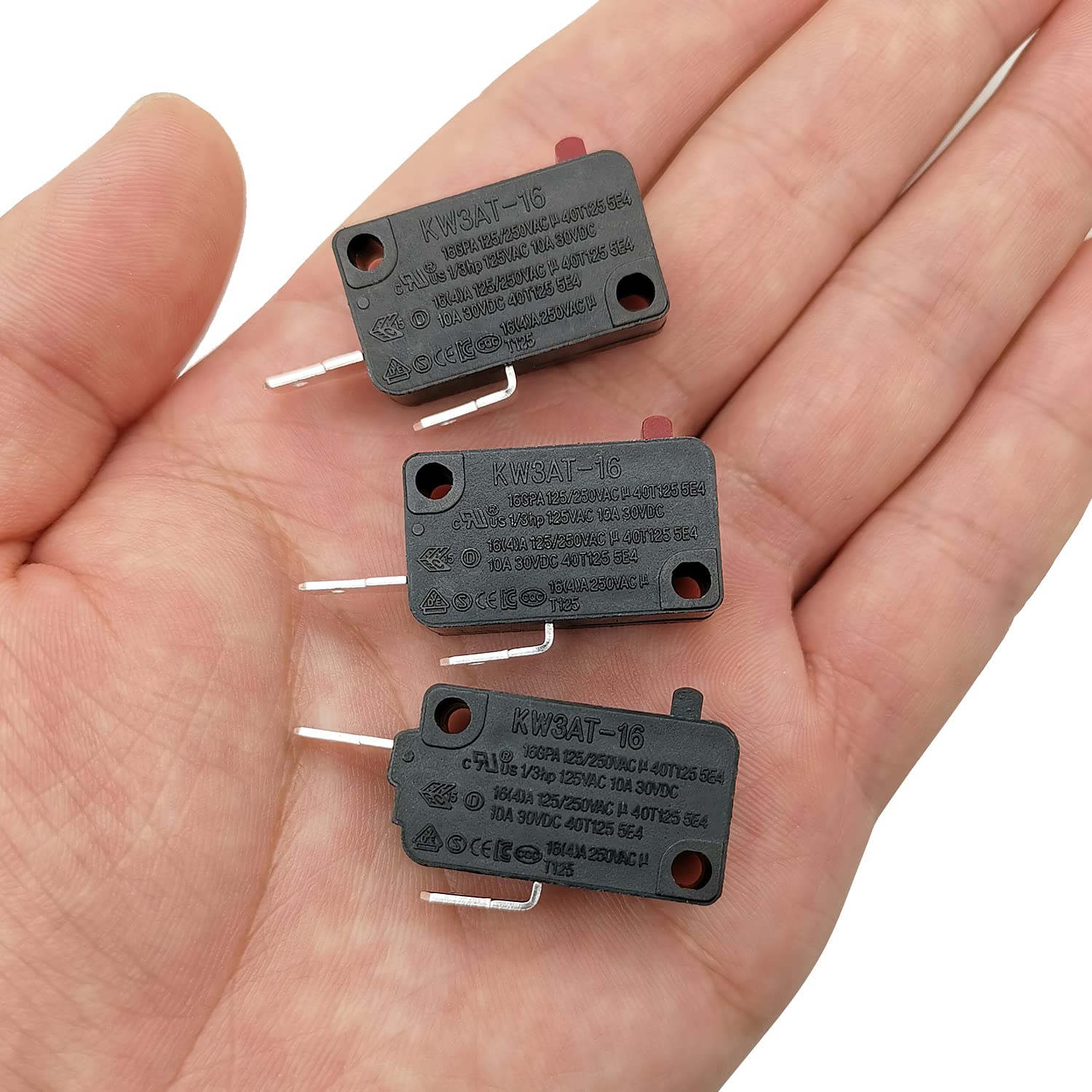

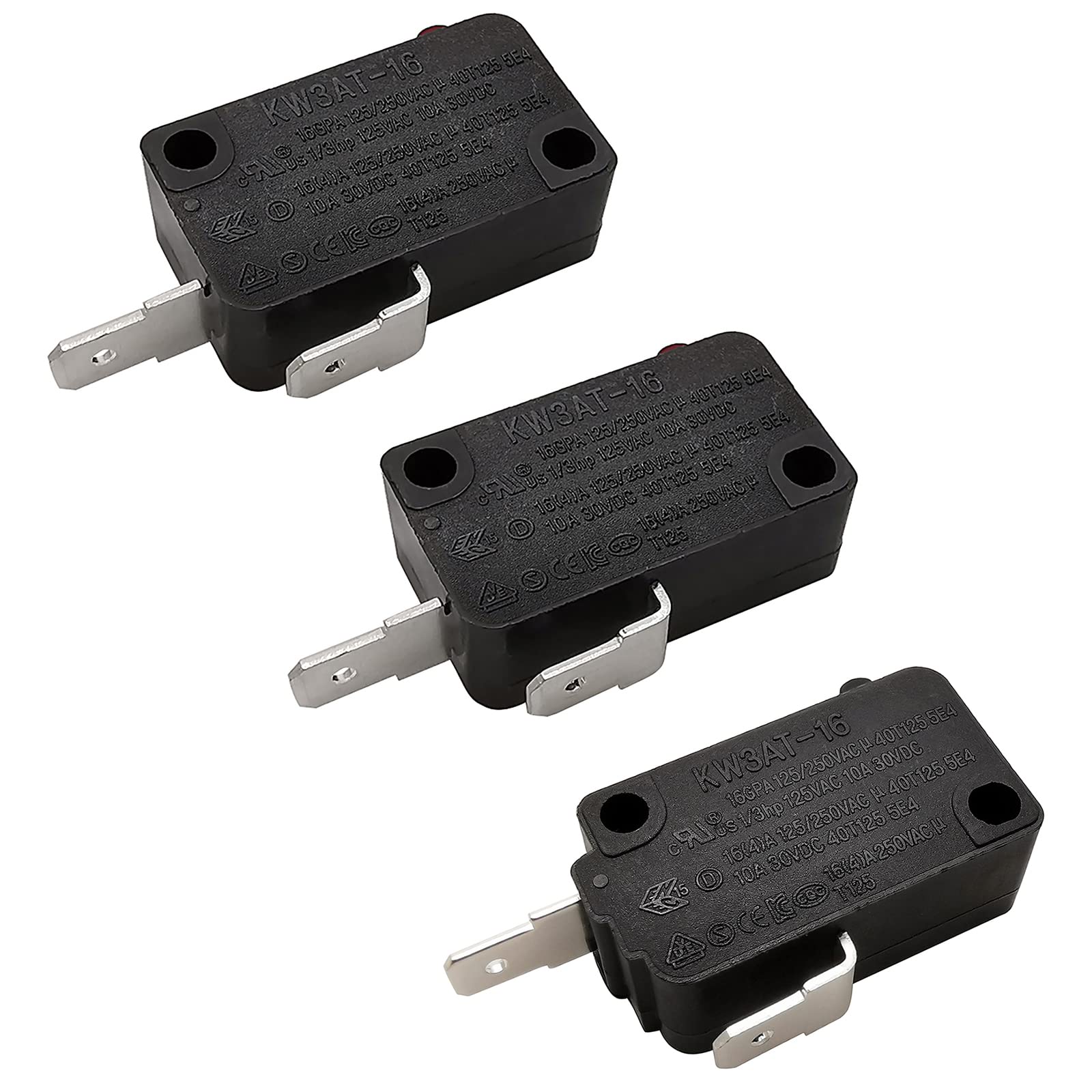

HiQltyla Microwave Door Switch Replacement, KW3AT-16 16A 125VAC, 2NO+1NC
</br>Universal Microwave Door Switch </br></br>Normally Open Switch: </br>Model Number: KW3AT-16 </br>Outline Characteristic: Flat Terminal </br>Material: High Temperature Resistant Plastics </br>Temperature Resistance: 125℃ </br>Color: Black </br>Current: 16A </br>Voltage: 125V / 250V </br>Mechanical Life: 5E4 (50000 times) </br>Terminal Type: Quick-connect Terminal #187(t=0.8) </br>Shell Dimensions: 1.09″ x 0.63″x 0.41″(27.8 x 15.9 x 10.3 mm) </br>Single Weight: 0.22oz / 6.3g </br></br>Normally Closed Switch: </br>Model Number: KW3AT-16 </br>Outline Characteristic: Basic Form </br>Material: High Temperature Resistant Plastics </br>Temperature Resistance: 125℃ </br>Color: Black </br>Current: 16A </br>Voltage: 125V / 250V </br>Mechanical Life: 5E4 (50000 times) </br>Terminal Type: Quick-connect Terminal #187(t=0.8) </br>Shell Dimensions: 1.18″ x 0.63″x 0.41″(30 x 15.9 x 10.3 mm) </br>Single Weight: 0.22oz / 6.2g </br></br>Package Includes: </br>2x Normally Open Switch </br>1x Normally Closed Switch
About this item:

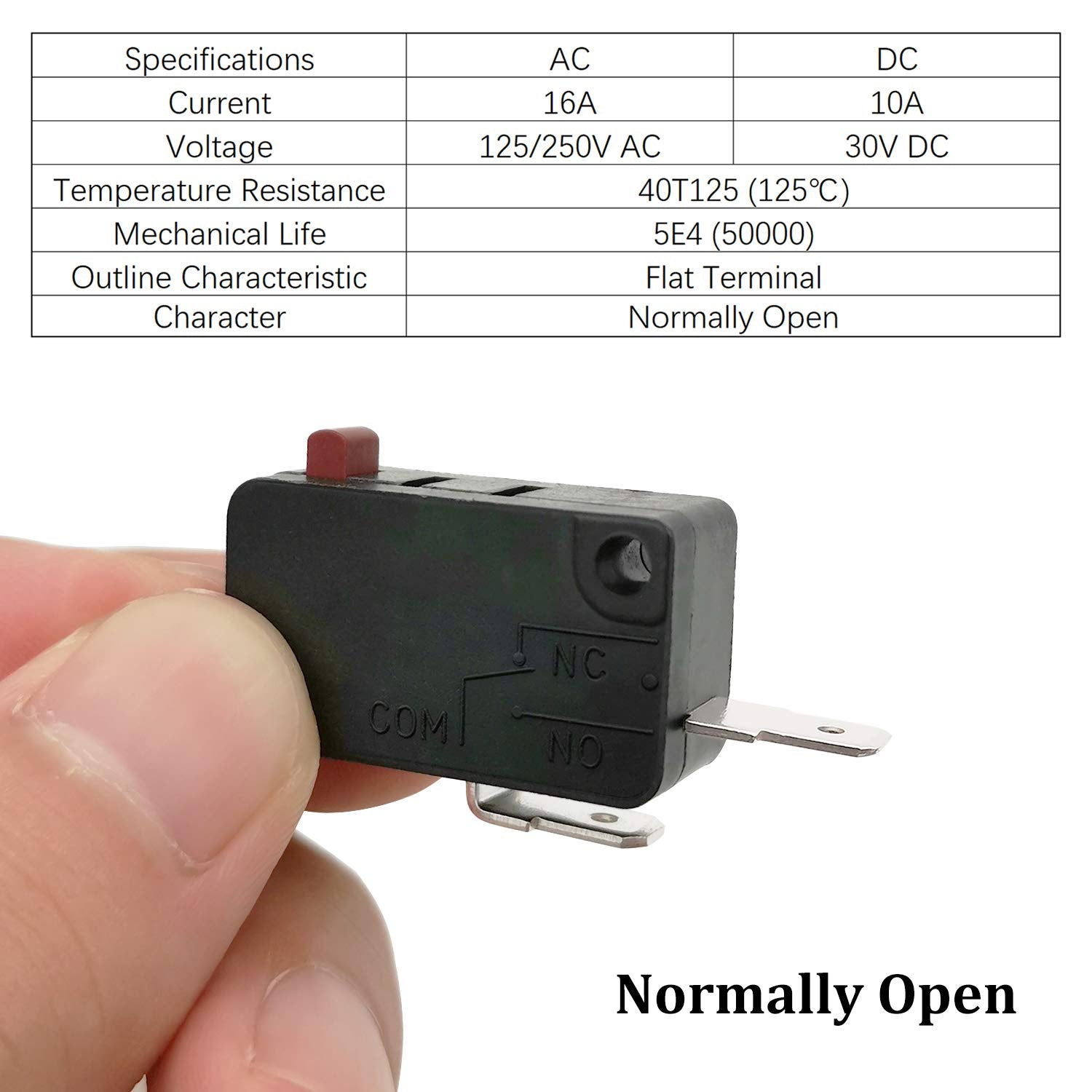

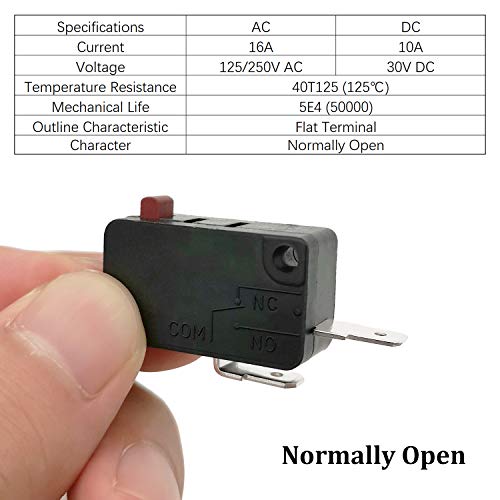

- Normally Open Switch: Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Flat Terminal, Character: Normally Open (Normal time Terminal COM connect to Terminal NC, the Circuit is Open; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Closed)

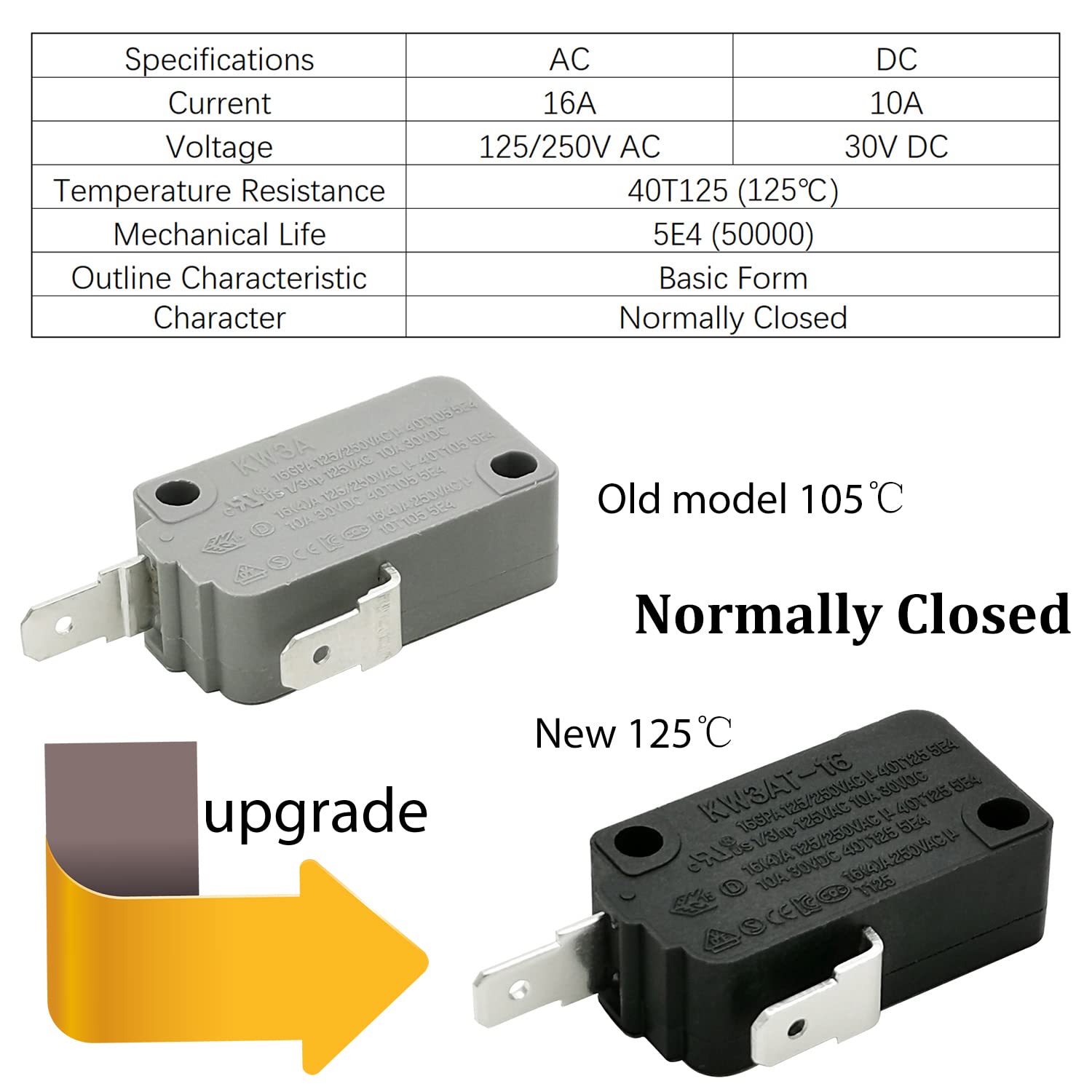

- Normally Closed Switch: Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Basic Form, Character: Normally Closed (Normal time Terminal COM connect to Terminal NC, the Circuit is Closed; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Open)
- How to Distinguish: Normally Open Switch is Flat Terminal, Relatively Short; Normally Closed Switch is Basic Form, Relatively Long
- KW3AT-16 has a maximum temperature resistance is 125 ℃ and KW3A-16 has a maximum temperature resistance is 105 ℃, Other electrical performances are the same, so KW3AT-16 is an upgraded version of KW3A-16, which is more competent in harsh working environments than KW3A-16
- Compatible with Most of Microwave Oven: If the microwave will not turn or heat properly, there could be an issue with the door switch, a new switch can return the microwave oven to normal operation
- Package Includes: 2x Normally Open Switch + 1x Normally Closed Switch
Condition: New: This item is brand new, unused, unopened, and in its original packaging. It has never been worn or used and is in perfect condition, just as received from the manufacturer.
